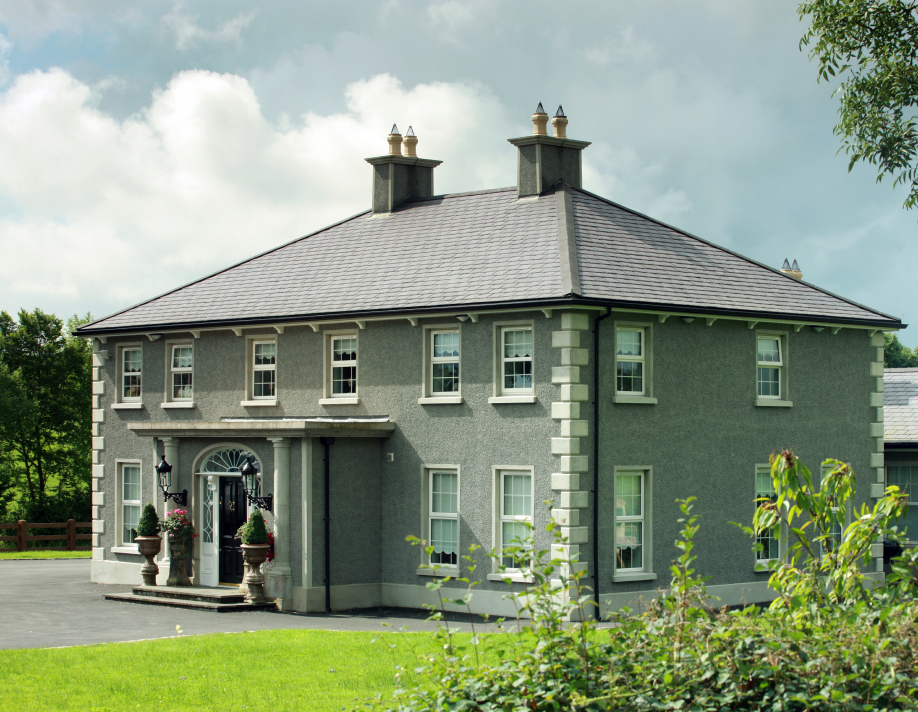

Described as 'Irish Palladian' in style this gorgeous house in Cultra Co Down is slated with Bangor Blue 500x300 slates. The owners of the house Colin and Barbara Barry always wanted to build their o…
View Case StudyColour and Finish | 'Heather Blue' Riven Textured |
Available in Sizes | 500 x 300mm (Other Sizes On Request) |
Available in Grades | Celtic, County, and Capital |
Nominal Thickness | Celtic 9.5mm, County 7.5mm, Capital 5.5mm |
Minimum Pitch | 22.5 deg for standard 100mm h/lap *normal exposure only*(for pitches below 22.5 deg please consult LBS Technical Dept) |
Maximum Headlap (std) | All LBS slates are holed for 100mm head-lap |
Alternative Headlap | For availability and advice please contact LBS |
Gauge | 200mm for slate pre-holed for 100mm head-lap |
Batten Size | Please refer to BS 5534 or SR 82:2017 |
Nails | Copper, Aluminium or Silicon Bronze |
Slate Dimensions/ Grade | 500x300mm Celtic Grade | 500x300mm County Grade | 500x300mm Capital Grade |
Weight per sqm Laid (kg) | 62.75 | 48.80 | 38.35 |
Slates per sqm at 100mm h/lap | 16.6 | 16.6 | 16.6 |
