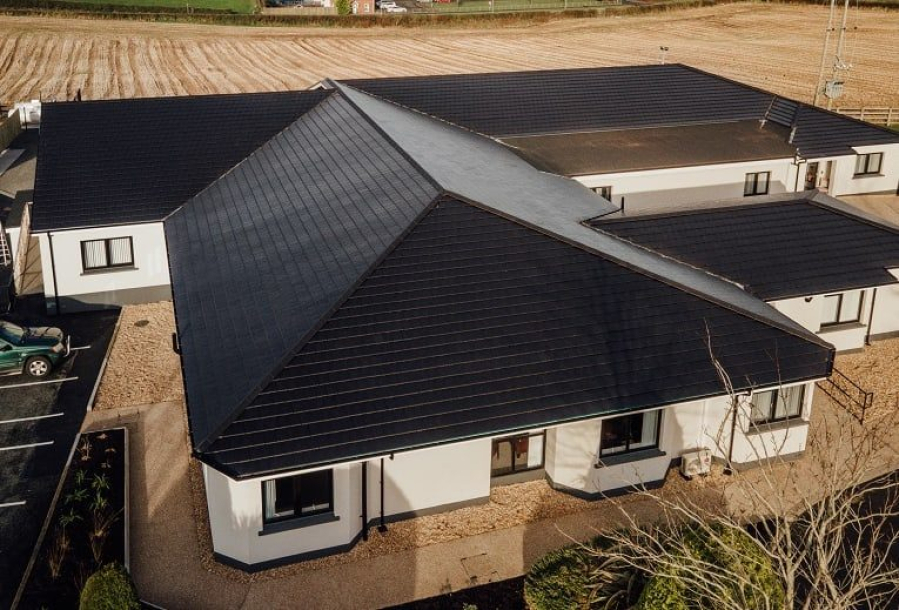

We were approached by Ann’s Care Homes Ltd to specify a new roof covering for a substantial renovation and redevelopment project outside Portadown. The project involved the conversion of the existing …
View Case StudyTile Size | 469mm x 285mm |
Minimum Roof Pitch | 17.5 degrees / For 12.5 degrees contact LBS |
Minimum Headlap | 65mm |
Maximum Headlap | 100mm |
Batten Spacing at Max Gauge | 405mm |
Batten Spacing at Min Gauge | 365mm |
Covering Capacity per sqm | 10 tiles per sqm at max gauge |
Hanging Length | 445mm |
Nominal Cover Width | 245mm |
Weight per Tile | 3.6kg |
Weight of tiling per sqm (approx) | 36kg |
Leading Edge Depth | 8mm |
Battens Required per sqm approx | Min 2.47, Max 2.71 |
Batten Size- up to 450mm rafter | 50x25mm |
Batten Size - up to 600mm rafter | 50x37mm nb. special fixing req |
Batten Size RoI | 45x35mm |
Tile Nails | Soltera Fixing System |
Tile and Eave Clips | Soltera Fixing System |
Accessories Available | Dry Verge, Ridge and ventilation |
